Solidity Series Hydraulic Bottom Patch Fitting
GGH’s Solidity Series Hydraulic Bottom Patch Fitting is a top-tier solution for commercial doors, office partitions, interior fit-ups, wine rooms, and more. It is designed for seamless integration with our & . Engineered for high-performance and durability, this fitting supports 10mm (3/8") and 12mm (1/2") glass and features precise manufacturing tolerances of 0.005mm to 0.01mm. It is cycle-tested for up to 500,000 open/close operations, ensuring reliability in high-traffic areas.
The system offers two adjustable speed settings with a Hold Open function at 90 degrees, making it easy to control door movement. It is designed to handle a maximum door weight of 100KGs (220.46LBS) and a door width of up to 39" (1000mm). The bottom plate allows for convenient adjustment, ensuring flexibility during installation.
Constructed from Grade 304 Stainless Steel with a custom aluminum cover plate, the Solidity Series is suitable for both interior and exterior applications.
Finishes Available:

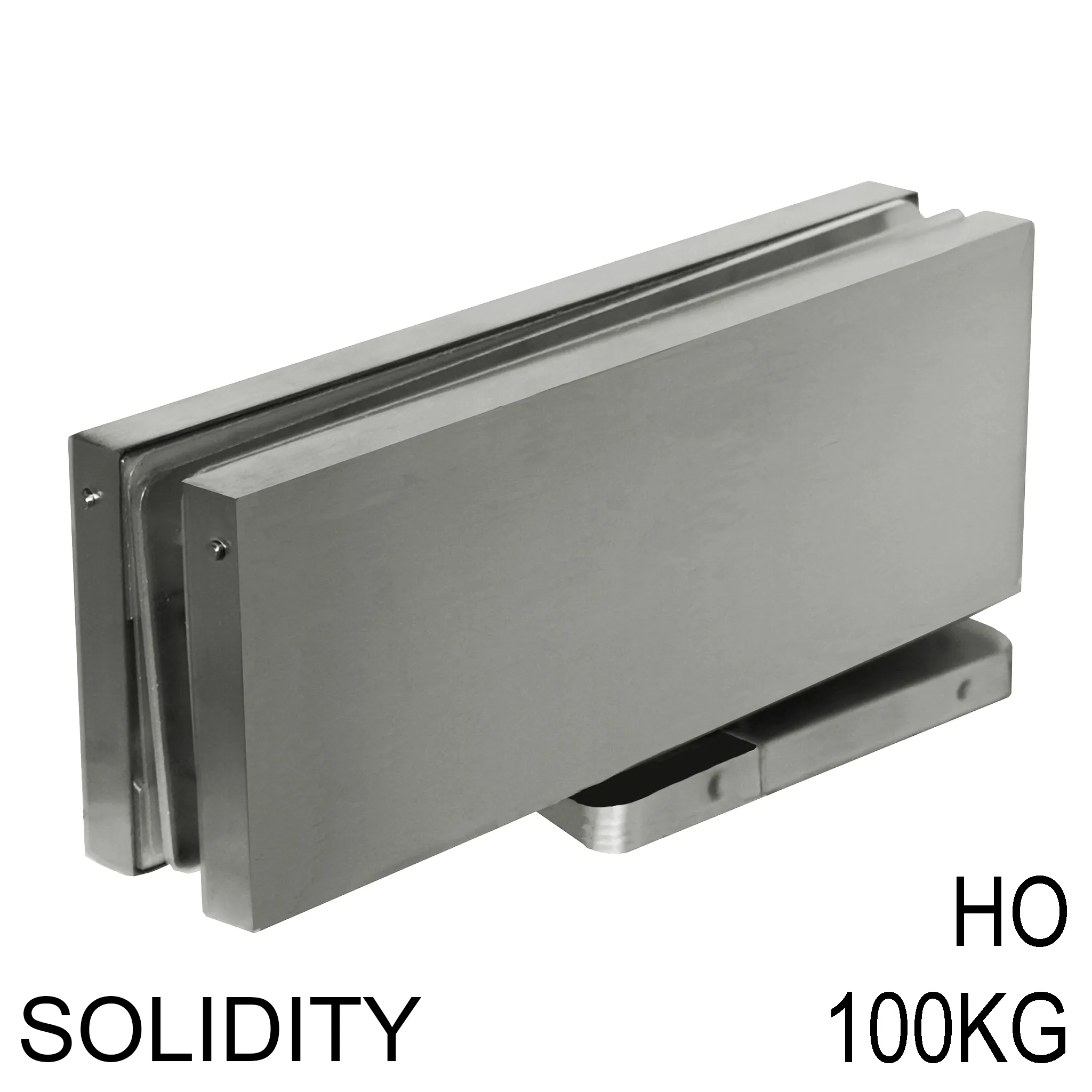

- Brushed Stainless

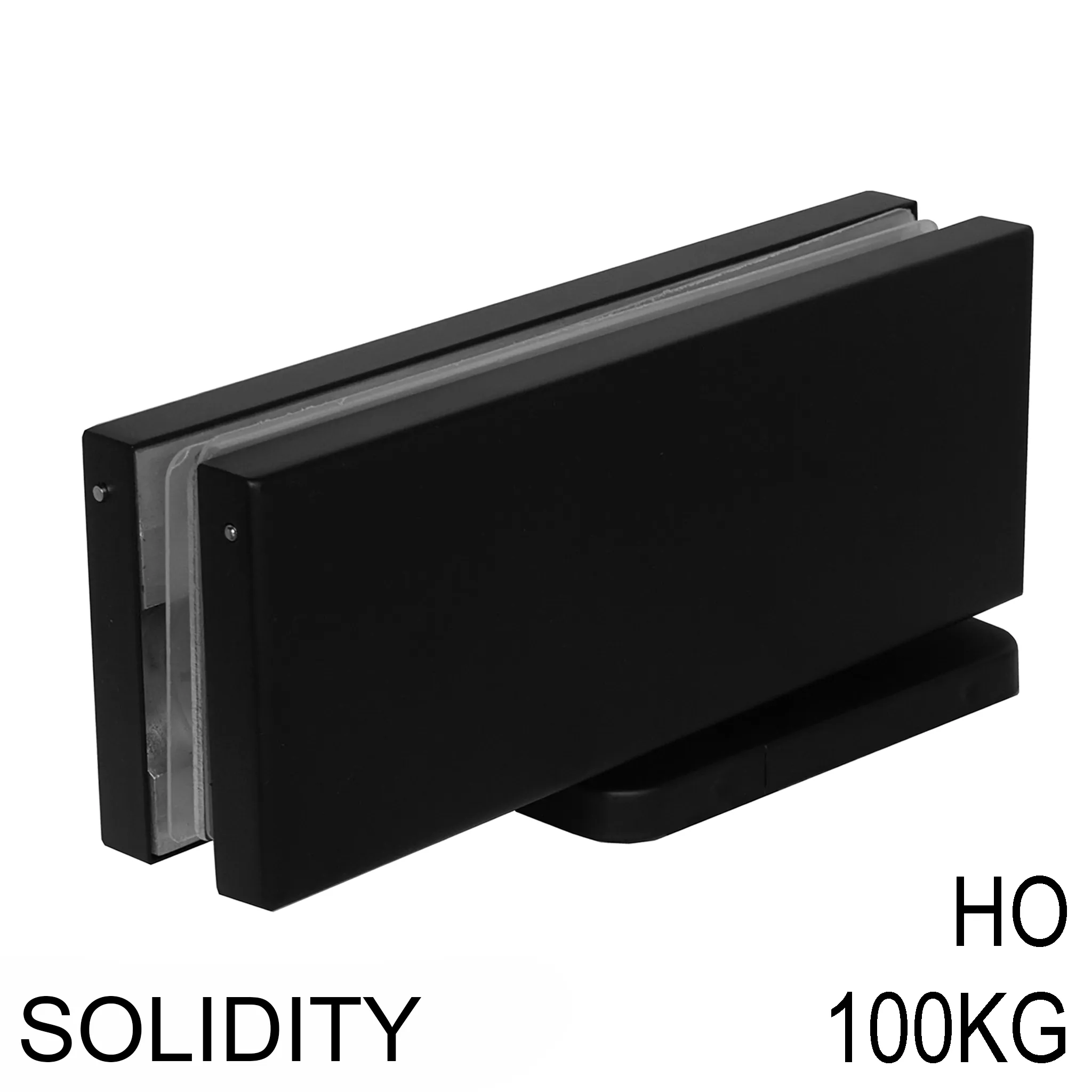

- Matte Black
- Polished Stainless

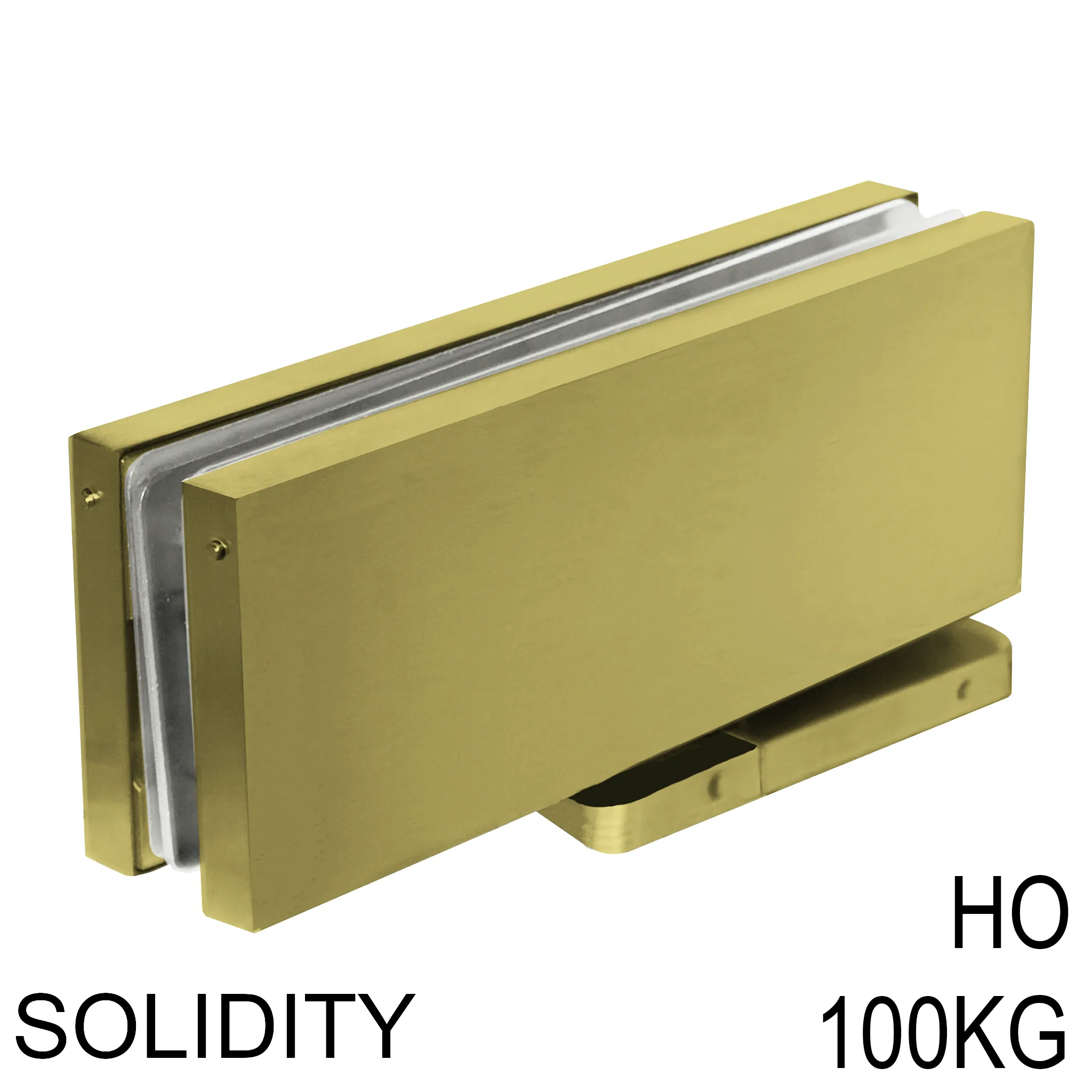

- Satin Brass

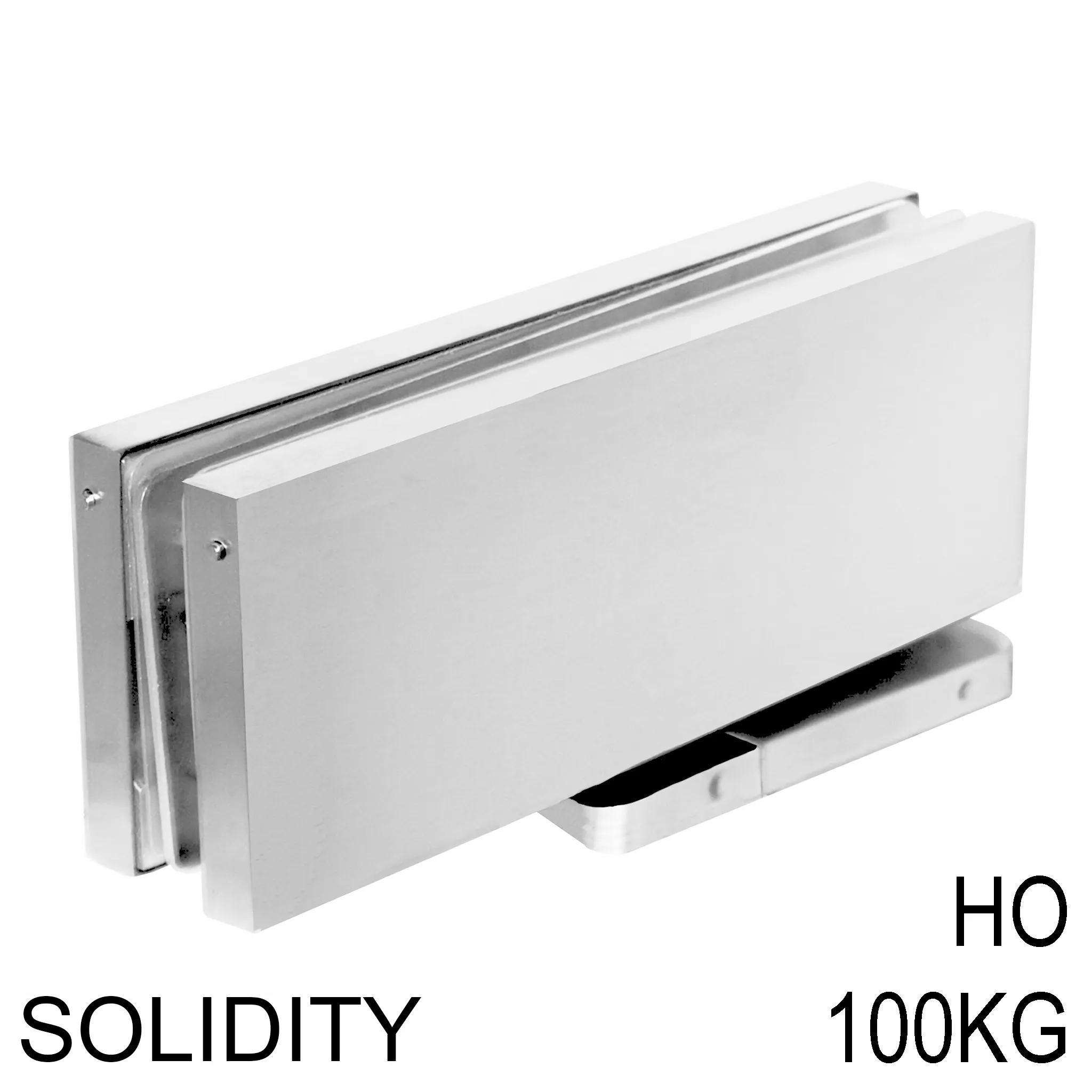

- Satin Anodized
- Custom Finishes Available (email: [email protected]).
Key Features:
- Maximum Weight: 100KG (220.46LBS)
- Maximum Door Width: 39" (1000mm)
- Two Adjustable Speed Settings
- Hold Open at 90 Degrees
- Cycle Tested for 500,000 Operations
- Made of Grade 304 Stainless Steel / Aluminum Cover Plates
- 2-Year Warranty
Glass fabrication required. View CAD/PDF product drawings for more details.
For additional information or custom finish requests, contact us at: .
